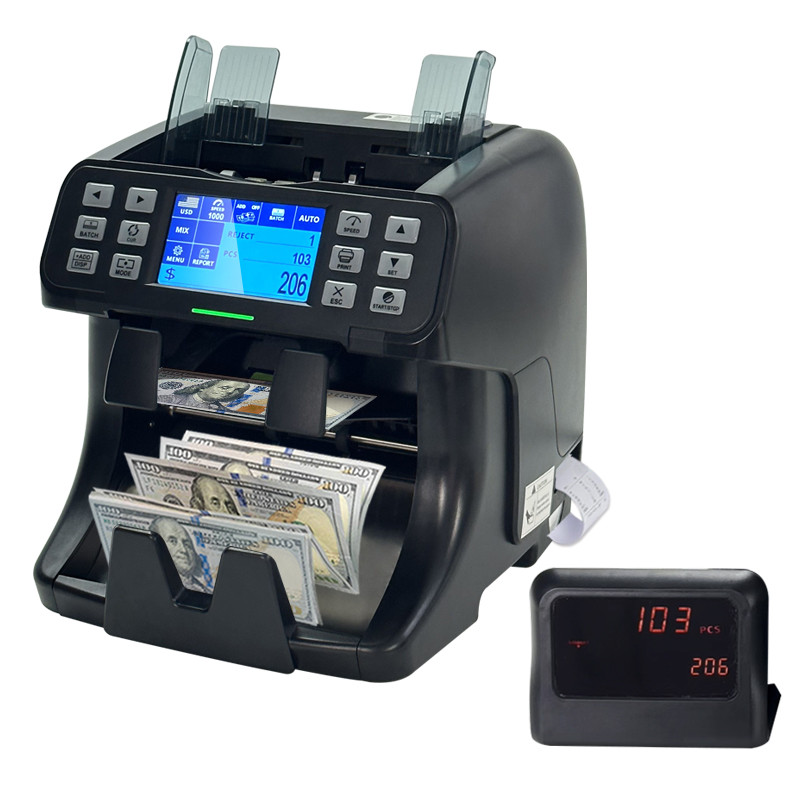

Bill counter XD-450p

Description:

Model: XD-450P

Hopper capacity:500 PCS (with hopper guider )

800-1000 PCS (with hopper extender)

Reject capacity:100 PCS

Stack capacity:200 PCS

Counting speed:800/ 1000 notes/min

N.W.:7.66KG

G.W.:9.06KG

Size of Package:330x385x455mm

Counterfeit Detection:UV, MG, IR, Dual CIS

Note size:110×50～180×90mm

Display:Touch Panel TFT

Power supply:100-240 V / 50-60 Hz

Power consumption:90 W (MAX)

Noise Level:Around 60-70 dB

Port USB port (Data collection and machine update)

RS232 port (connect with Printer)

LAN port (connect with external display)

Android port (connect with PC)

Last counted: record counted PCS of last batch

Amount: show total counted amount of banknotes

ADD: touch to active add function.

SORT: touch to switch sorting face/ orientation/ face& orientation

Report: touch to check the count and reject report details

Print: touch to print the counted with or without serial number

Menu: touch to enter the menu to set machine

Clear: press to backward or clear the counting result.

Start: press to back to home page or start counting in manual mode, or restart counting result.

Currency: touch to choose the currency needs to be count

Count Mode: touch to switch MIX (mixed denomination count), SORT (single denomination count), SG (sort the chosen denomination), COUNT (PCS count) mode.

Speed: touch to switch the counting speed.

BATCH: touch to set the batch number.

Auto: touch to switch auto count and manual count.

FLAG: show matched flag with the currency.

Reject: show reject PCS of banknotes

PCS: show counted PCS of banknotes

Features:

1.Touch Screen

2.Mix value counting of multi currency

3.Auto currency identification

4.Easy updates via USB flash drive

5.Denomination Detection:Contact Image Sensor

6.Serial numbers reading (USD,EUR,GBP,CNY, PHP,IDR) (optional)

7.Printer and PC connection (optional)

8.Available currencies: USD, EUR, GBP, CAD, MXN... Up to 40 currencies

9.Counterfeit Detection: CIS, Magnetic, Infrared,Ultraviolet

10.Options: Remote Display / Thermal Printer/PC connection

Display: 3.5 Inch TFT Display

Counting Speed: 800 / 1000 /1200 notes/min

Size of Countable Note: 50×110/90×180mm

Machine Dimensions: 265(W) x 295(D) x 285(H)mm

Net Weight: 9.82kg/unit

Size of Carton: 450x420x410mm

Gross Weight: 12.7kg

Power Supply: lding  100-240V, 50/60Hz

Power Consumption: 0.2A(100~240 VAC) 120W

Hopper Capacity: 500 pcs

Stacker Capacity: 200pcs

Reject Capacity: 100pcs

Display Language: English or Customized

Feed system: Roller Friction System

Temperature: 0℃~35℃(Operating)

Usage Environment: -10℃~60℃(Stock)

Humidity: 20%~90%(no condensation)
